| Standard | 4G LTE Cat.4 |
| WiFi | 2.4GHz, Support AP Mode/STD Mode/WiFi Direct |
| Bluetooth | BLE 4.0 |
| Band |
Eurasian Version
LTE-FDD: B1/B3/B5/B7/B8/B19/B20
LTE-TDD: B38/B39/B40/B41 (100M) WCDMA: B1/B2/B5/B8 GSM: B2/B3/B5/B8
American Version
LTE-FDD: B2/B3/B4/B5/B7/B12/B17
LTE-TDD: B38/B41 (100M) WCDMA: B2/B4/B5 GSM: B2/B5/B8 |
| Front Camera (Main) | 1920×1080/25FPS/F2.2/Full color/118° (HFoV) |
| Peripheral Camera (Optional) |
CI01: 1280×720/15FPS/F2.0/Full color in daytime & monochrome in dim light/100° (HFoV) CI03: 1280×720/15FPS/F2.4/Full color in daytime & monochrome in dim light/119° (HFoV) CE01: 1280×720/15FPS/F2.0/Full color/IP67/125° (HFoV) |
| Video Format | .mp4 |
| GNSS | GPS/BDS |
| Sensor | 6-axis |
| Microphone | Support |
| Speaker | Support |
| Interface | Micro USB*1, SOS*1, RS232*1, Relay*1 |
| Memory Support | TF card (Up to 256GB) |
| SIM Card Type | Nano |
| LED Indication | Red (Power), Blue (Cellular), Green (GNSS) |
| Power Supply | Power cable: B+/ACC/GND |
| Operating Voltage | DC 9-30V |
| Operating Temperature | -20°C to +65°C |
| Storage Temperature | -30°C to +85°C |
| Device Weight | 233g |
| Device Dimension | 109*69*52mm |
| Certifications | CE/FCC/RoHS |

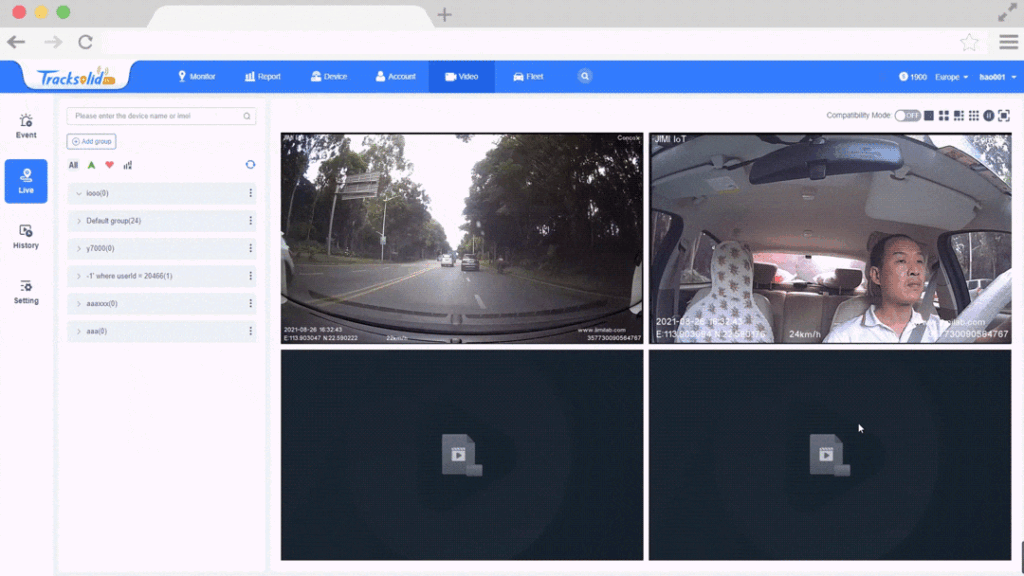

Dual-Channel Recording
Monitor the road ahead through the integrated lens and what is happening in the cab, in the rear, to the side, or to the driver through a peripheral camera to meet your specific business needs.

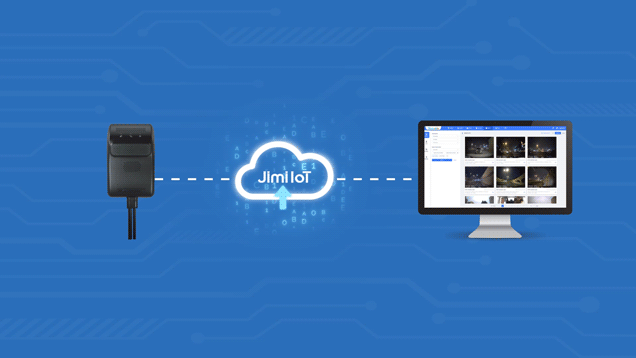

Video Surveillance
Powerful LTE connectivity enables the live monitoring of the vehicle’s interior and exterior via an online platform; while the critical video clips in the device allows for on-demand playback after the fact from anywhere, at any time.

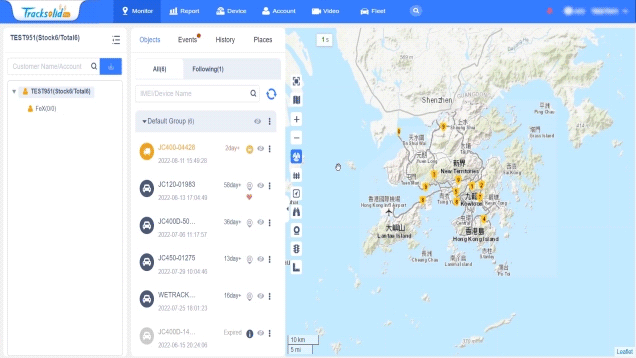

Multiple Alerts
Record and upload video clips or still images of customizable events such as speeding and SOS button activation.

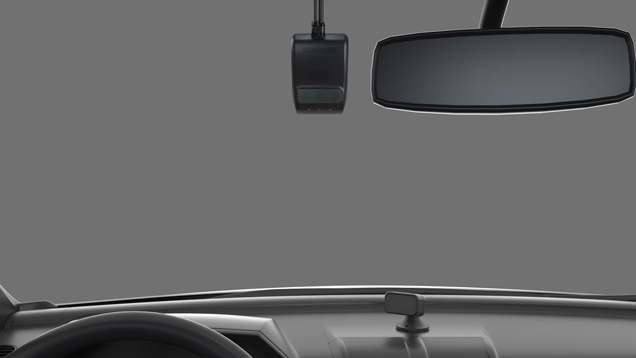

Compact Size
The small form factor allows discreet installation behind the rearview mirror without blocking the driver’s view.

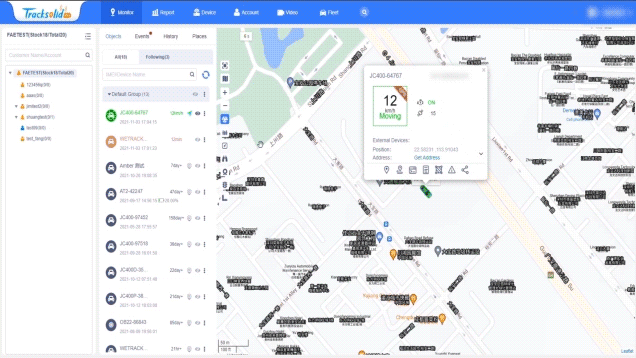

Vehicle Immobilization
Enable you to cut off the fuel/power to the vehicle moving under 20km/h using Tracksolid Pro, which is useful if your fleet vehicle has been stolen.
CI01
Infrared Cabin-View Camera
CI02
Cabin-View USB Camera
CI03
An Upgrade of JC400 with AI
